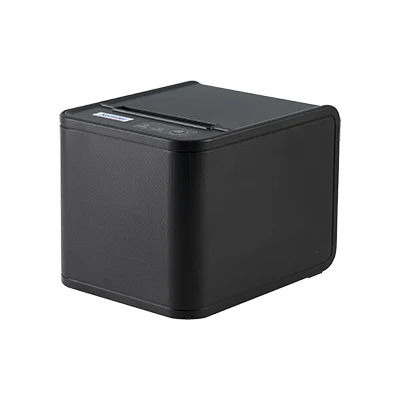

XP-80T Lan

Printing Features:

Resolution: -

203 DPI (8 dots/mm)

Printing method: -

Direct Thermal

Max.print speed: -

152 mm/s Max.

Max.print width: -

Max.76 mm

Media:

Media type: -

Thermal paper/Thermal stickers paper

Media width: -

20~82 mm

Media roll diameter: -

Max.100 mm

Performance Features:

Memory: -

DRAM:4M FLASH:4M

Interfaces: -

USB+Serial/ USB+Serial + Ethernet

（Optional: Bluetooth)

Sensors: -

 Print head temperature sensor / Cover open / Paper end / Gap

Drawer port: -

1 port (Pin 2 for cashdrawer)

Fonts/Graphics/Symbology:

Character sizes: -

Font 0 to Font8

1D barcode: -

CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14

2D bar code: -

PDF417、QR_CODE、DATMATRIX

Emulation: -

Label print mode: TSPL

Physical Features:

Dimension: -

231*163*150.7mm(D×W×H)

Weight: -

1.50 kg

Reliability:

Print head life: -

100 km

Software:

Driver: -

Label print mode: Windows          Receipt print mode: Windows/Linux/Mac/Android

Power supply:

Input: -

DC 24V/2.5A

Environmental Conditions:

Operation: -

5～45℃， Humidity: RH  20～80%

Storage environment: -

-40～55 ℃， Humidity: ≤93%RH (40℃)
